Davit Masts & Arms

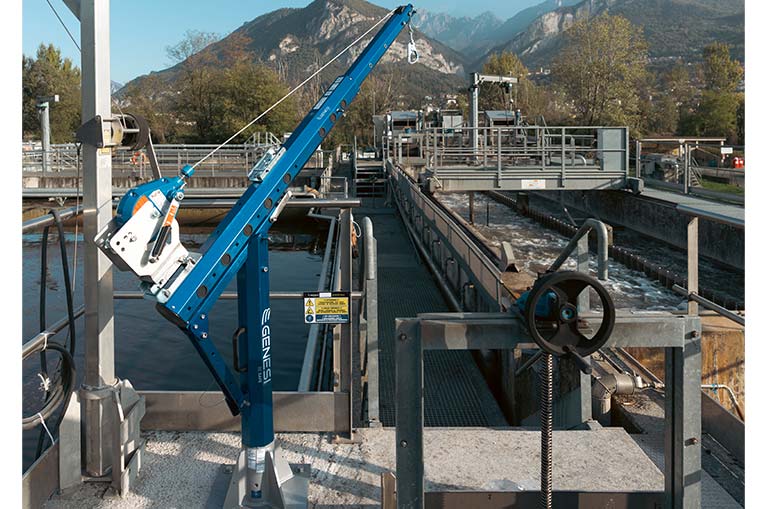

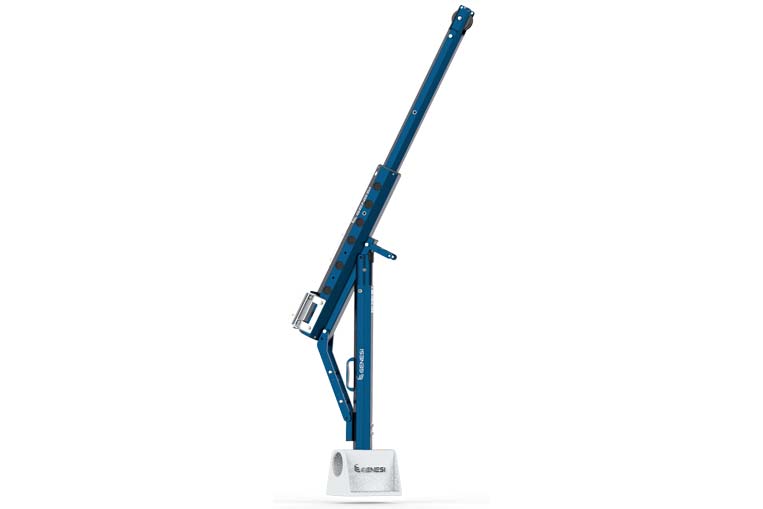

Genesi SC6NW System
The Genesi SC6NW system has been carefully designed to make it the lightest certified 3-operator solution on the market.
The special aluminium alloy, anodisation and octagonal shape optimise performance and allow each of its components to be easily transported by a single person. The tie rod on the arm folds for ease of transport and offers a quick and easy means of attachment to the mast so it can be installed by a single operator.
The Genesi SC6NW system has the following features:
- Adjustable, with 2 arm lengths up to 570mm
- Comes with two attachment plates for fall arrest, recovery blocks or winches
- Equipped with additional anchor point
- Octagonal profile for increased mechanical strength
- Entirely made of anodised aluminium for lightness and protection
- Easy to install and use
The SC6NW system can be used for:
- Fall arrest: Maximum of three users: each connected to one of the anchor points on the device. The fall arrest system must comply with EN 363 and the maximum force generated for arrest must be less than 6 kN
- Rescue / Evacuation: The system can be used with certified devices EN1496:2006 or EN1496:2017 class A or B and the maximum weight of the operator and any accessories to be connected to the evacuation device is related to the EN1496:2017 device.
- Goods Lifting: The Genesi SC devices mounted on fixed supports can be used, if necessary, for material handling using a single lifting device type SOIT006M. The maximum load that can be handled is 220 kg and after this manoeuvre the device must be carefully inspected.
The system can be used with a wide range of bases both fixed and mobile making the system extremely versatile and adaptable to many situations.
The SC6NW system conforms to the PPE Regulation 2016/425, EN795:2012 type B and CEN/TS 16415:2013 type B for a maximum of three users.
Weekly hire rate excluding VAT | |
SC6NW Davit Arm & SC6-PNW Mast | £120.00 |
The Genesi SC6NW system requires a suitable Genesi davit socket to be installed or a compatible mobile base.
Sales price excluding VAT | |
SC6NW Davit Arm | £1,769.00 |
SC6-PNW Mast | £685.00 |
Offset Fall Arrest System Support | £143.00 |
Service price excluding parts and VAT | |
Genesi SC6NW system | £30.00 |
Dimensions: | Arm Length 1267mm – 1832mm |
Arm Reach: | Position A 310mm, Position B 570mm |
Mast Length: | 1195mm including pin, 975mm working length |
Weight: | 27.8kg to 29.1kgs dependent upon attachment brackets |
Material: | Aluminium alloy |
Conformity: | PPE Regulation 2016/425, EN795:2012 type B, CEN/TS 16415:2013 type B |

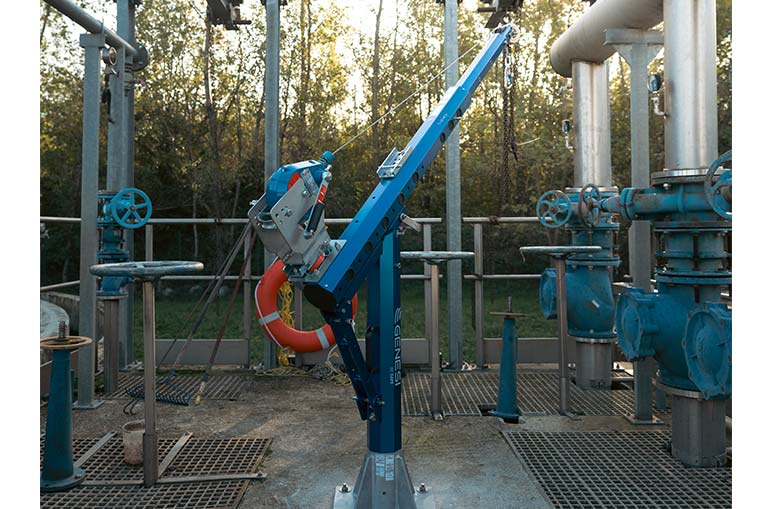

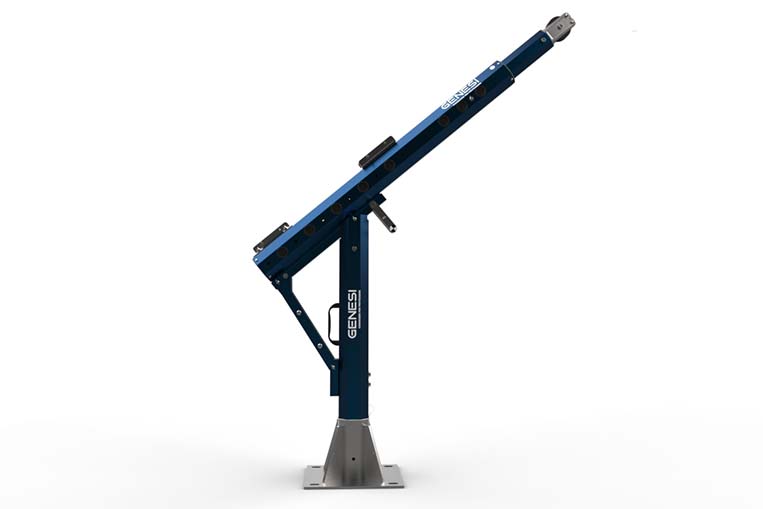

Genesi SC12NW System
The Genesi SC12NW system has been designed to make it lightweight and certified for 3 operatives allowing a maximum offset of 1200mm from the socket
The special aluminium alloy, anodisation and octagonal shape optimise performance and allow each of its components to be easily transported by a single person. The tie rod on the arm folds for ease of transport and offers a quick and easy means of attachment to the mast so it can be installed by a single operator.
The Genesi SC12NW system has the following features:
- Adjustable, with 3 arm lengths up to 1200mm
- Comes with two attachment plates for fall arrest, recovery blocks or winches
- Equipped with additional anchor point
- Octagonal profile for increased mechanical strength
- Entirely made of anodised aluminium for lightness and protection
- Easy to install and use
The SC12NW system can be used for:
- Fall arrest: Maximum of three users: each connected to one of the anchor points on the device. The fall arrest system must comply with EN 363 and the maximum force generated for arrest must be less than 6 kN
- Rescue / Evacuation: The system can be used with certified devices EN1496:2006 or EN1496:2017 class A or B and the maximum weight of the operator and any accessories to be connected to the evacuation device is related to the EN1496:2017 device.
- Goods Lifting: The Genesi SC devices mounted on fixed supports can be used, if necessary, for material handling using a single lifting device type SOIT006M. The maximum load that can be handled is 220 kg and after this manoeuvre the device must be carefully inspected.
The system can be used with a wide range of fixed bases making the system extremely versatile and adaptable to many situations.
The SC12NW system conforms to the PPE Regulation 2016/425, EN795:2012 type B and CEN/TS 16415:2013 type B for a maximum of three users.
Weekly hire rate excluding VAT | |
SC12NW Davit Arm & Main Mast with 2 Attachment Brackets | £150.00 |
SC12P-575 575mm mast extension for SC12NW | £20.00 |
The Genesi SC12NW system requires a suitable Genesi davit socket to be installed.
Sales price excluding VAT | |
SC12NW Davit Arm | £2,498.33 |
SC12-PNW Mast | £812.00 |
Offset Fall Arrest System Support | £143.00 |
SC12P-575 Extension Mast | £596.00 |
Service price excluding parts and VAT | |
Genesi SC12NW system | £30.00 |
Dimensions: | Arm Length 782mm – 1200mm |
Arm Reach: | Position A 782mm, Position B 918mm, Position C 1200mm |
Mast Length: | 1050mm including pin, 820mm working length |
Weight: | 34.4kg to 35.8kg depending upon bracket |
Material: | Aluminium alloy |
Conformity: | PPE Regulation 2016/425, EN795:2012 type B, CEN/TS 16415:2013 type B |
Advanced Lower Masts
Lower mast extensions are designed for use with the advanced offset davit masts. They provide the flexibility to change the overall mast height of your system in the field. The extensions are available in 533mm, 838mm, 1143mm and 1448mm lengths for maximum customisation options and scenarios.
Constructed from anodized and powder coated aluminium, these units are not only extremely lightweight, they are durable and built to last and offer several different winch or fall arrest mounting positions.
Davit adaptors are available for fixed davit bases to convert high capacity bases for use with advanced masts.
Weekly hire rate excluding VAT | |
Lower Mast 533mm | £9.00 |
Lower Mast 838mm | £11.00 |
Lower Mast 1143mm | £13.00 |
Lower Mast 1448mm | £15.00 |
Service price excluding parts and VAT | |
All Advanced Lower Mast Extensions | £10.00 |
Weight: | 533mm: 6.8kg 838mm: 8.2kg 1143mm: 9.5kg 1448mm: 10.9kg |
Standards: | CE EN795 Class B |
Davit Mast Extensions High Capacity
Davit Mast Extensions High Capacity are designed for use with compatible 3M DBI-Sala Davit Arm Systems. They provide the flexibility to change the overall mast height of your system. The extensions are available in 53cm, 84cm, 114cm and 140cm lengths for maximum customisation options and scenarios.
Constructed from lightweight 6061-T6 aluminium that has been powder coated, these units are durable and built to last and offer several different winch or fall arrest mounting positions.
The external diameter of mast extensions is 10.1cm.
Davit adaptors are available for fixed davit bases to convert advanced bases for use with high capacity masts.
Sales price excluding VAT | |
53cm Davit Mast Extension High Capacity | £696.63 |
84cm Davit Mast Extension High Capacity | £839.49 |
114cm Davit Mast Extension High Capacity | £990.24 |
144cm Davit Mast Extension High Capacity | £1,141.95 |
Service price excluding parts and VAT | |
All Davit Mast Extension High Capacity | £10.00 |
Weight: | 53cm: 8.4kg 84cm: 10.9kg 114cm: 13.3kg 144cm: 15.7kg |
Standards: | CE EN795: 2012 Class B CEN/TS16415: 2013 TypeB EN1496:2006 Class B Machine Directive 2006/42/CE § 6 |
Advanced Adjustable Offset Davit Arms
The davit arm is designed to be able to run up to two winches or fall arrest blocks. If two winches are used only one operative can man-ride at any one time as the unit is not certified for two man-riding. There is also an attachment hook so that small chain blocks can be used as the davit is rated to lift 205kg goods.
The 300-730mm Offset Davit Mast offers four different extensions to extend over your entry position.
The 760-1200mm Offset Davit Mast offers four different extensions to extend over your entry position but only the first two holes can be used as only these are CE rated.
Davit adaptors are available for fixed davit bases to convert high capacity bases for use with advanced masts.
Weekly hire rate excluding VAT | |
300-730mm Adjustable Offset Davit Arm | £55.00 |
760-1200mm Adjustable Offset Davit Arm | £65.00 |
Service price excluding parts and VAT | |
All Sala Adjustable Offset Davit Arms | £30.00 |
Weight: | 300-700mm: 11.25kg 760-1200mm: 13.75kg |
Standards: | CE EN795: 1996 Class B |
Davit Arm High Capacity
The Davit Arm High Capacity offers a lightweight, easily transportable davit arm for use with compatible portable bases or fixed mount bases. The davit arm extension length can be adjusted to one of four positions and the davit arm angle can be adjusted to one of three positions.
The davit arm has 4x EN795 type B connection points that are certified for fall arrest for two users at the same time. Used in conjunction with the universal lower mast and a mast extension the arm is designed to be able to run up to two winches or fall arrest blocks. If two winches are used only one operative can man-ride at any one time as the unit is not certified for two man-riding.
The offset arms can be collapsed for easy transport and storage.
Davit adaptors are available for fixed davit bases to convert advanced bases for use with high capacity masts.
Sales price excluding VAT | |
Short Reach Davit Arm High Capacity (14"-28") and Universal Lower Mast | £2,143.01 |
Long Reach Davit Arm High Capacity (27"-44") and Universal Lower Mast | £2,508.55 |
Short Reach Offset Arm High Capacity (14"-28") | £1,059.16 |
Long Reach Offset Arm High Capacity (27"-44") | £1,424.78 |
Universal Lower Mast High Capacity | £1,083.78 |
Service price excluding parts and VAT | |
All Davit Arms High Capacity | £30.00 |
Weight: | Short Reach: 6.4kg Long Reach: 9.1kg Universal Lower Mast: 10.1kg |
Standards: | CE EN795: 2012 Class B CEN/TS16415: 2013 TypeB EN1496:2006 Class B Machine Directive 2006/42/CE § 6 |
T-Davit Winched
The T-Davit Winched is a lightweight and portable unit for use with compatible fixed mount bases or suitable portable mount bases that can support both goods and personnel lifting. The base of the column incorporates a bearing so that moving the davit whilst under load is simple.
The unit can be operated and assembled by just one person with no tools required and has a 360° rotation under a full load. With multiple beam and column options available it is a very versatile system that can cater to a range of applications. Please refer to the T-Davit Winched table for the standard configurations available.
The T-Davit Winched can support both goods and personnel lifting and is approved to EN795:2012 and ATEX Zone 2 as standard and optionally for ATEX Zone 1.
It is predominantly constructed from aluminium and has an anodised finish for increased corrosion resistance and supplied in its own carry bag for ease of transportation.
Weekly hire rate excluding VAT | |
T-Davit Winched: Column Option 5 (1954mm - 2342mm height of lift) and Beam Option 2 (1110mm - 1200mm radius) | £95.00 |
The T-Davit requires a suitable Reid Davit Socket to be installed or a compatible mobile base.
Sales price excluding VAT | |
T-Davit Winched: Column Option 1 Beam Option 1 | £1,957.94 |
T-Davit Winched: Column Option 1 Beam Option 2 | £2,2026.35 |
T-Davit Winched: Column Option 1 Beam Option 3 | £2,094.76 |
T-Davit Winched: Column Option 1 Beam Option 4 (Goods Only) | £2,163.17 |
T-Davit Winched: Column Option 2 Beam Option 1 | £2,026.35 |
T-Davit Winched: Column Option 2 Beam Option 2 | £2,094.76 |
T-Davit Winched: Column Option 2 Beam Option 3 | £2,163.17 |
T-Davit Winched: Column Option 2 Beam Option 4 (Goods Only) | £2,231.59 |
T-Davit Winched: Column Option 3 Beam Option 1 | £2,094.76 |
T-Davit Winched: Column Option 3 Beam Option 2 | £2,163.17 |
T-Davit Winched: Column Option 3 Beam Option 3 | £2,231.59 |
T-Davit Winched: Column Option 3 Beam Option 4 (Goods Only) | £2,300.00 |
T-Davit Winched: Column Option 4 Beam Option 1 | £2,163.17 |
T-Davit Winched: Column Option 4 Beam Option 2 | £2,231.59 |
T-Davit Winched: Column Option 4 Beam Option 3 | £2,300.00 |
T-Davit Winched: Column Option 4 Beam Option 4 (Goods Only) | £2,368.40 |
T-Davit Winched: Column Option 5 Beam Option 1 | £2,231.59 |
T-Davit Winched: Column Option 5 Beam Option 2 | £2,300.00 |
T-Davit Winched: Column Option 5 Beam Option 3 | £2,368.40 |
T-Davit Winched: Column Option 5 Beam Option 4 (Goods Only) | £2,436.81 |
Bracket to suit your winch | P.O.A. |
Item does not include Winches or Brackets
Service price excluding parts and VAT | |
T-Davit Winched | £30.00 |
Standards: | EN795:2012 (Beam options 1-3 only) PD CEN /TS1641S:2013 AS/NZS 5532:2013 ATEX Certified (Zone 2) as standard or optionally ATEX Certified (Zone 1) IRATA (900-1200mm Radius unit only) |
For beam and column dimensions, WLL and weights please see the T-Davit Winched table.
T-Davit Double Winched
The T-Davit Double Winched is a lightweight and portable unit designed for fall protection applications including confined space entry. It can be used with compatible fixed mount bases or suitable portable mount bases and can support both goods and personnel lifting. The base of the column incorporates a bearing so that moving the davit whilst under load is simple.
It has a sheave front and rear of the beam for winch rope or wire winch cable and a range of winch brackets available as standard.
The unit can be operated and assembled by 1-2 people with no tools required and has a 360° rotation under a full load. With multiple beam and column options available it is a very versatile system that can cater to a range of applications. Please refer to the T-Davit Double Winched table for the standard configurations available.
The T-Davit Winched can support both goods and personnel lifting and is approved to EN795:2012 and ATEX Zone 2 as standard and optionally for ATEX Zone 1.
It is predominantly constructed from aluminium and has an anodised finish for increased corrosion resistance and supplied in its own carry bag for ease of transportation.
Weekly hire rate excluding VAT | |
T-Davit Double Winched: Column Option 5 (1954mm - 2342mm height of lift) and Beam Option 2 (1110mm - 1200mm radius) | £95.00 |
The T-Davit requires a suitable Reid Davit Socket to be installed or a compatible mobile base.
Sales price excluding VAT | |
T-Davit Double Winched: Column Option 3 Beam Option 0 | £2,389.79 |
T-Davit Double Winched: Column Option 3 Beam Option 1 | £2,458.13 |
T-Davit Double Winched: Column Option 3 Beam Option 2 | £2,526.50 |
T-Davit Double Winched: Column Option 4 Beam Option 0 | £2,458.13 |
T-Davit Double Winched: Column Option 4 Beam Option 1 | £2,526.50 |
T-Davit Double Winched: Column Option 4 Beam Option 2 | £2,594.84 |
T-Davit Double Winched: Column Option 5 Beam Option 0 | £2,526.50 |
T-Davit Double Winched: Column Option 5 Beam Option 1 | £2,594.84 |
T-Davit Double Winched: Column Option 5 Beam Option 2 | £2,663.20 |
Bracket to suit your winch | P.O.A. |
The T-Davit requires a suitable Reid Davit Socket to be installed or a compatible mobile base.
Service price excluding parts and VAT | |
T-Davit Double Winched | £30.00 |
Standards: | EN795:2012 ATEX Certified (Zone 2) as standard or optionally ATEX Certified (Zone 1) Meets the requirements of IRATA ICOP |
For beam and column dimensions, WLL and weights please see the T-Davit Double Winched table.
T-Davit Shackled
The T-Davit Shackled is a lightweight and portable unit for use with compatible fixed mount bases that can support both goods and personnel lifting. The base of the column incorporates a bearing so that moving the davit whilst under load is simple.
The unit can be operated and assembled by just one person with no tools required and has a 360° rotation under a full load. With multiple beam and column options available it is a very versatile system that can cater to a range of applications. Please refer to the T-Davit Shackled table for the standard configurations available.
The T-Davit Shackled can support both goods and personnel lifting and is approved to EN795:2012 and ATEX Zone 2 as standard and optionally for ATEX Zone 1.
It is predominantly constructed from aluminium and has an anodised finish for increased corrosion resistance and supplied in its own carry bag for ease of transportation.
Sales price excluding VAT | |
T-Davit Shackled: Column Option 1 Beam Option 1 | £1,780.07 |
T-Davit Shackled: Column Option 1 Beam Option 2 | £1,848.49 |
T-Davit Shackled: Column Option 1 Beam Option 3 | £1,916.90 |
T-Davit Shackled: Column Option 1 Beam Option 4 (Goods Only) | £1,985.31 |
T-Davit Shackled: Column Option 2 Beam Option 1 | £1,848.49 |
T-Davit Shackled: Column Option 2 Beam Option 2 | £1,916.90 |
T-Davit Shackled: Column Option 2 Beam Option 3 | £1,985.31 |
T-Davit Shackled: Column Option 2 Beam Option 4 (Goods Only) | £2,053.71 |
T-Davit Shackled: Column Option 3 Beam Option 1 | £1,916.90 |
T-Davit Shackled: Column Option 3 Beam Option 2 | £1,985.31 |
T-Davit Shackled: Column Option 3 Beam Option 3 | £2,053.71 |
T-Davit Shackled: Column Option 3 Beam Option 4 (Goods Only) | £2,122.11 |
T-Davit Shackled: Column Option 4 Beam Option 1 | £1,985.31 |
T-Davit Shackled: Column Option 4 Beam Option 2 | £2,053.71 |
T-Davit Shackled: Column Option 4 Beam Option 3 | £2,122.11 |
T-Davit Shackled: Column Option 4 Beam Option 4 (Goods Only) | £2,190.52 |
T-Davit Shackled: Column Option 5 Beam Option 1 | £2,053.71 |
T-Davit Shackled: Column Option 5 Beam Option 2 | £2,122.11 |
T-Davit Shackled: Column Option 5 Beam Option 3 | £2,190.52 |
T-Davit Shackled: Column Option 5 Beam Option 4 (Goods Only) | £2,258.96 |
Bracket to suit your winch | P.O.A. |
The T-Davit requires a suitable Reid Davit Socket to be installed.
Service price excluding parts and VAT | |
T-Davit Shackled | £30.00 |
Standards: | EN795:2012 (beam options 1-3 only) PD CEN /TS1641S:2013 AS/NZS 5532:2013 ATEX Certified (Zone 2) as standard or optionally ATEX Certified (Zone 1) IRATA (900-1200mm Radius unit only) |
For beam and column dimensions, WLL and weights please see the T-Davit Shackled table.
Didsbury Standard 250 Davit System
The Standard 250 Davit System consists of a two-piece split pillar and a removable slewing jib arm with hoist mounting and chain claw bracket for use with compatible fixed mount bases.
They are designed primarily for use with the Didsbury man-riding and goods-lifting hoists although by using a pole hoist almost any winch or fall arrest block can be used for vertical lifting. Standard chain blocks can also be attached to the Standard 250 Davit System. The jib has an integral 'U' bracket for suspension of the hoist and a chain claw bracket and eye fitted as standard.
The Standard reach jib radius is 1m and is rated for 254kg for man-riding and 500kg for goods. The Standard split pillar height is 2m and rotates 360°. The jib also rotates around the pillar in a manoeuvrable arc of 270° to allow optimum positioning of the load.
Weekly hire rate excluding VAT | |
Didsbury Standard 250 Davit System | £65.00 |
Didsbury Standard 250 Davit System requires a suitable Didsbury Davit Socket to be installed.
Sales price excluding VAT | |
Didsbury Standard 250 Davit System | P.O.A. |
Service price excluding parts and VAT | |
Service and Certification for the Didsbury Standard 250 Davit System completed on site | £275.00 plus transport costs |
Materials: | Steel and Powder Coated |
WWL: | Man-riding at 1m reach WLL 254kgs (560lbs) at safety factor of 10:1 Materials Lifting at 1m reach WLL 500kgs (1102lbs) at safety factor of 4:1 |
Porta-Davit Quantum
The Porta-Davit Quantum is a lightweight unit that can be rapidly deployed for use with compatible fixed mount bases or suitable portable mount bases that can support both goods and personnel lifting. It is available with either a winch option or a shackle only version.
The unit is easy to assemble by just one person, no tools are required as the setup is achieved with pins. The radius of the unit can also be quickly adjusted. Fully assembled it weighs less than 25kg and can be operated by just one person. It has a 360° rotation under a full load and has an innovative bearing design that allows fingertip control. The unit is fitted with a mechanism that will indicate if the structure has been overloaded.
This one piece unit has multiple accessory attachment and shackle lifting points.
The Porta-Davit Quantum can support both goods and personnel lifting and is approved to EN795:2012 and ATEX Zone 2 as standard and optionally for ATEX Zone 1.
The unit is supplied in its own carry bag for ease of transportation.
Sales price excluding VAT | |
Porta-Davit Quantum Strop & Shackle Only (900-1200mm radius) WLL 600kg | £1,603.89 |
Porta-Davit Quantum Ridged Backstay, Winch Ready (900-1200mm radius) WLL 600kg | £2,040.09 |
Porta-Davit Quantum Strop & Shackle Only (1200-1500mm radius) WLL500kg | £1,644.15 |
Porta-Davit Quantum Ridged Backstay, Winch Ready (1200-1500mm radius) WLL500kg | £2,080.35 |
Bracket to suit your winch | P.O.A. |
The Porta-Davit Quantum requires a suitable Reid Davit Socket to be installed.
Service price excluding parts and VAT | |
Porta-Davit Quantum | £30.00 |
Weight: | 900-1200mm Radius: 22.5kg 1200mm-1500mm Radius: 23.00kg |
Capacity: | 900-1200mm Radius: Goods Lifting 600kg; Personnel Lifting 300kg 1200mm-1500mm Radius: Goods Lifting 500kg; Personnel Lifting 250kg |
Maximum Reach: | 900-1200mm Radius: 1200mm 1200mm-1500mm Radius: 1500mm |
Maximum Height of Lift: | 900-1200mm Radius: 2111mm 1200mm-1500mm Radius: 1957mm |
Standards: | EN795:2012 PD CEN /TS1641S:2013 AS/NZS 5532:2013 ATEX Certified (Zone 2) as standard or optionally ATEX Certified (Zone 1) IRATA (900-1200mm Radius unit only) |
3M/Sala Advanced & High Capacity Davit Mast Adaptors
The advanced and high capacity davit mast adaptors can be used to convert fixed base davit sockets to accomodate masts as needed.
The 8000124 adaptor is suitable for the old advanced fixed davit bases and can be used with short reach offset arm high capacity (14"-28") only.
The 8000134 adaptor is suitable for the new high capacity fixed davit bases and can be used with either of the advanced adjustable offset davit arms.
They must only be used with fixed bases and cannot be used with any of the portable davit base systems.
Sales price excluding VAT | |
8000124 Adaptor - 3" Fixed Base to High Capacity | £378.56 |
8000134 Adaptor - High Capacity to 3" Davit Masts | £135.92 |
Service price excluding parts and VAT | |
Davit Base Adaptors | £10.00 |
Weight: | 8000124 Adaptor: 8.6kg 8000134 Adaptor: 1.36kg |
Compatability: | 8000124 Adaptor: 3M™ DBI-SALA® High Capacity (HC) Short Reach Davit Systems only. 8000134 Adaptor: 3M™ High Capacity (HC) Davit Bases and legacy Short and Long Reach Advanced Davits. Short Reach Advanced Davits can be used with two Mast Extensions, up to 229 cm (90.0 in) of combined extension length. Advanced One-Piece Short Reach Davits can be used, but must not be used with additional Mast Extensions. Long Reach Advanced Davits can be used with only one Mast Extension, up to 145 cm (57.0 in). Advanced One- |
