Reid T-Davit Specifications

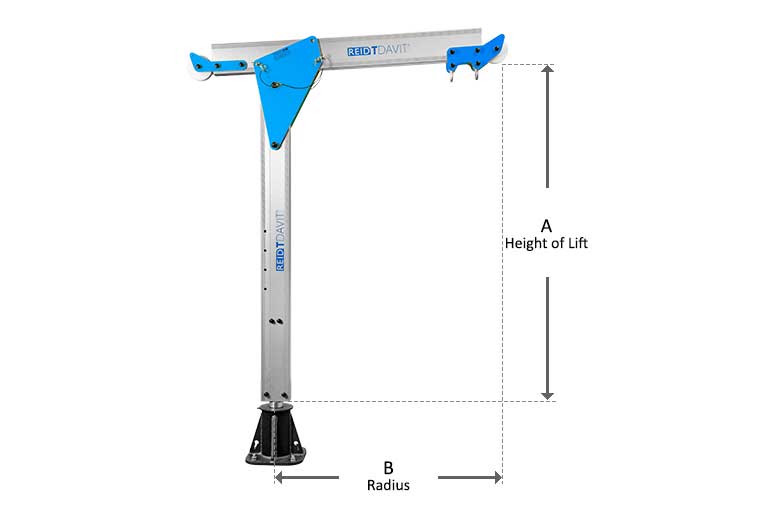

T-Davit Winched

Description	System Weight (kg)	Goods Capacity (kg)	Personnel Capacity (kg)	A [Height of Lift]	B [Radius*]
T-Davit Type W Column option 1 Beam option 1	32	500	250	839 - 1151	925 - 1000
T-Davit Type W Column option 1 Beam option 2	33	500	250	839 - 1227	1110 - 1200
T-Davit Type W Column option 1 Beam option 3	36	375	150	839 - 1380	1478 - 1600
T-Davit Type W Column option 1 Beam option 4	39	300	-	839 - 1532	1850 - 2000
T-Davit Type W Column option 2 Beam option 1	33	500	250	1019 - 1331	925 - 1000
T-Davit Type W Column option 2 Beam option 2	34	500	250	1019 - 1407	1110 - 1200
T-Davit Type W Column option 2 Beam option 3	37	375	150	1019 - 1560	1478 - 1600
T-Davit Type W Column option 2 Beam option 4	40	300	-	1019 - 1712	1850 - 2000
T-Davit Type W Column option 3 Beam option 1	35	500	250	1329 - 1641	925 - 1000
T-Davit Type W Column option 3 Beam option 2	36	500	250	1329 - 1717	1110 - 1200
T-Davit Type W Column option 3 Beam option 3	39	375	150	1329 - 1870	1478 - 1600
T-Davit Type W Column option 3 Beam option 4	42	300	-	1329 - 2022	1850 - 2000
T-Davit Type W Column option 4 Beam option 1	37	500	250	1644 - 1956	925 - 1000
T-Davit Type W Column option 4 Beam option 2	38	500	250	1644 - 2032	1110 - 1200
T-Davit Type W Column option 4 Beam option 3	41	375	150	1644 -2185	1478 - 1600
T-Davit Type W Column option 4 Beam option 4	44	300	-	1644 - 2337	1850 - 2000
T-Davit Type W Column option 5 Beam option 1	40	500	250	1954 - 2266	925 - 1000
T-Davit Type W Column option 5 Beam option 2	41	500	250	1954 - 2342	1110 - 1200
T-Davit Type W Column option 5 Beam option 3	44	375	150	1954 - 2495	1478 - 1600
T-Davit Type W Column option 5 Beam option 4	47	300	-	1954 - 2647	1850 - 2000

*Radi achieved at = 75% WLL

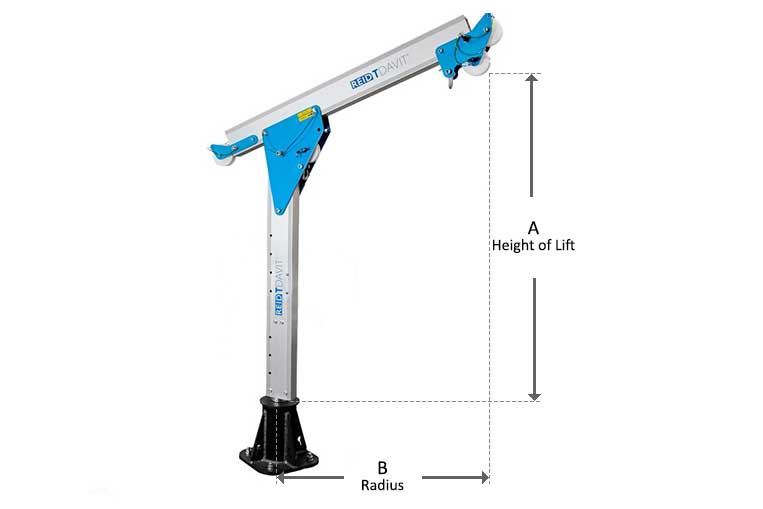

T-Davit Double Winched

Description	System Weight (kg)	Goods Capacity (kg)	Personnel Capacity (kg)	A [Height of Lift]	B [Radius*]
T-Davit Type DW Column option 3 Beam option 0	34	600	300	1329 - 1567	706 - 800
T-Davit Type DW Column option 3 Beam option 1	35	500	250	1329 - 1641	925 - 1000
T-Davit Type DW Column option 3 Beam option 2	36	400	200	1329 - 1717	1100 - 1200
T-Davit Type DW Column option 4 Beam option 0	36	600	300	1644 - 1882	706 - 800
T-Davit Type DW Column option 4 Beam option 1	37	500	250	1644 - 1956	925 - 1000
T-Davit Type DW Column option 4 Beam option 2	38	400	200	1644 - 2032	1100 - 1200
T-Davit Type DW Column option 5 Beam option 0	39	600	300	1954 - 2192	706 - 800
T-Davit Type DW Column option 5 Beam option 1	40	500	250	1954 - 2266	925 - 1000
T-Davit Type DW Column option 5 Beam option 2	41	400	200	1954 - 2342	1100 - 1200

*Radi achieved at = 75% WLL

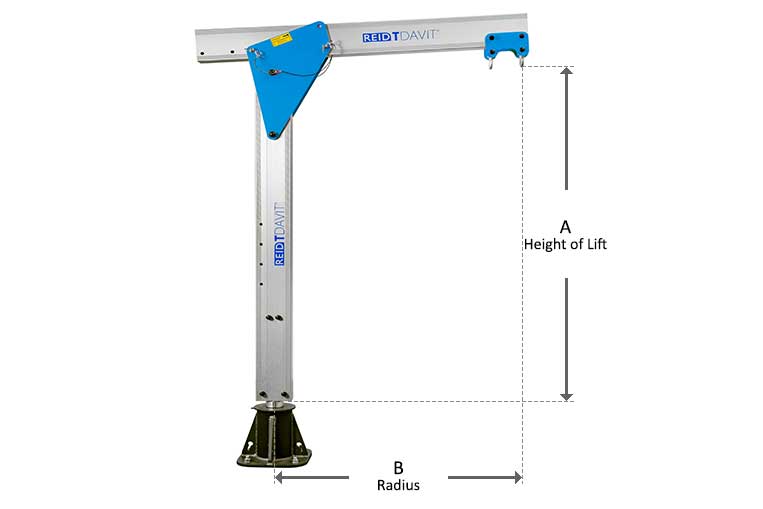

T-Davit Shackled

Description	System Weight (kg)	Goods Capacity (kg)	Personnel Capacity (kg)	A [Height of Lift]	B [Radius*]
T-Davit Type S Column option 1 Beam option 1	30	500	250	912 - 1224	775 - 850
T-Davit Type S Column option 1 Beam option 2	31	500	250	912 - 1300	960 - 1050
T-Davit Type S Column option 1 Beam option 3	34	375	150	912 - 1453	1328 - 1450
T-Davit Type S Column option 1 Beam option 4	37	300	-	912 - 1605	1700 - 1850
T-Davit Type S Column option 2 Beam option 1	31	500	250	1092 - 1404	775 - 850
T-Davit Type S Column option 2 Beam option 2	32	500	250	1092 - 1480	960 - 1050
T-Davit Type S Column option 2 Beam option 3	35	375	150	1092 - 1633	1328 - 1450
T-Davit Type S Column option 2 Beam option 4	38	300	-	1092 - 1785	1700 - 1850
T-Davit Type S Column option 3 Beam option 1	33	500	250	1402 - 1714	775 - 850
T-Davit Type S Column option 3 Beam option 2	34	500	250	1402 - 1790	960 - 1050
T-Davit Type S Column option 3 Beam option 3	37	375	150	1402 - 1943	1328 - 1450
T-Davit Type S Column option 3 Beam option 4	40	300	-	1402 - 2095	1700 - 1850
T-Davit Type S Column option 4 Beam option 1	35	500	250	1717 - 2029	775 - 850
T-Davit Type S Column option 4 Beam option 2	36	500	250	1717 - 2105	960 - 1050
T-Davit Type S Column option 4 Beam option 3	39	375	150	1717 - 2258	1328 - 1450
T-Davit Type S Column option 4 Beam option 4	42	300	-	1717 - 2410	1700 - 1850
T-Davit Type S Column option 5 Beam option 1	38	500	250	2027 - 2339	775 - 850
T-Davit Type S Column option 5 Beam option 2	39	500	250	2027 - 2415	960 - 1050
T-Davit Type S Column option 5 Beam option 3	42	375	150	2027 - 2568	1328 - 1450
T-Davit Type S Column option 5 Beam option 4	45	300	-	2027 - 2720	1700 - 1850

*Radi achieved at = 75% WLL
