Rail Systems

The AluxRail is a versatile anchorage device comprising of extruded aluminium rails and trolleys to enable work in restraint, for fall protection and suspension.

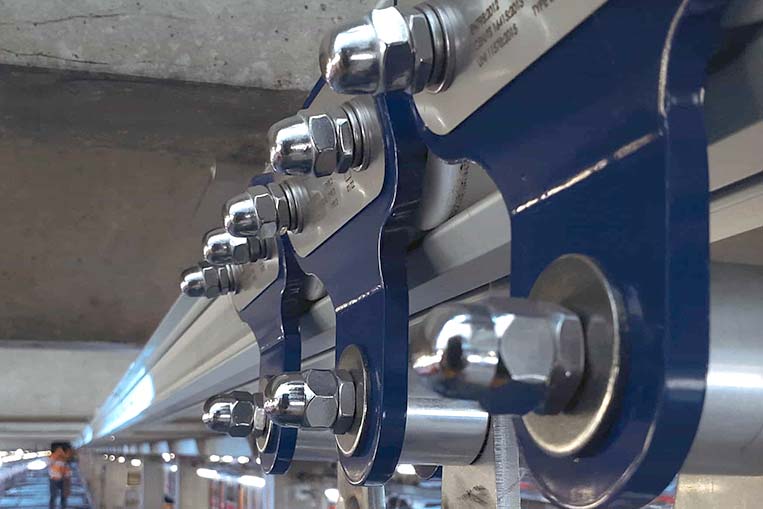

The rail is installed with ceiling or wall brackets which are set at 3m for suspension work and up to 8m for fall arrest applications. Along with straight sections there are curved inserts to adapt the rail to the building shape.

Genesi AluxRail complies with EN 795:2012 Type D, CEN/TS16415:2013 and UNI11578:2015 and can protect up to 4 operators.

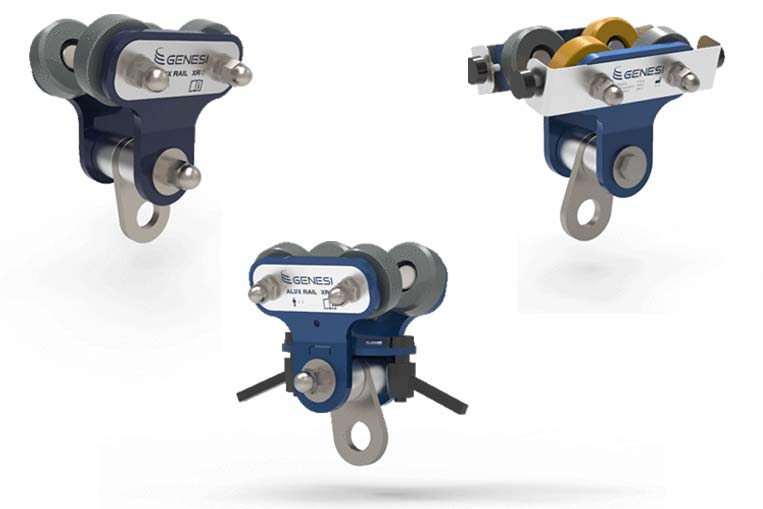

Genesi has designed trolleys for different usage needs: for fall protection, for use in suspended work and for applications in potentially explosive environments.

The AluxRail is available in an ATEX version for installation in potentially explosive environments in accordance with Directive 2014/34/EU and EN 80079-36:2016 and EN 80079-37:2016 class II cat. 2. It can also be used in zone 1 for dust-based and gas-based explosive atmospheres (group II2G, II2D).

• Non-deformable system
• Use with multiple operators simultaneously
• Use in suspended work
• Light & Modular
• Ten-year warranty
• Certifications according to the strictest sector regulations

Made of a special anodized aluminum alloy, the AluxCrab rail profile has been specially designed to ensure light weight, great versatility in design, ease of installation and low visual impact. AluxCrab can be installed on the ceiling, wall or floor with a maximum distance between fixings of 3 meters, the joints can be made at any point in the span between two fixings.

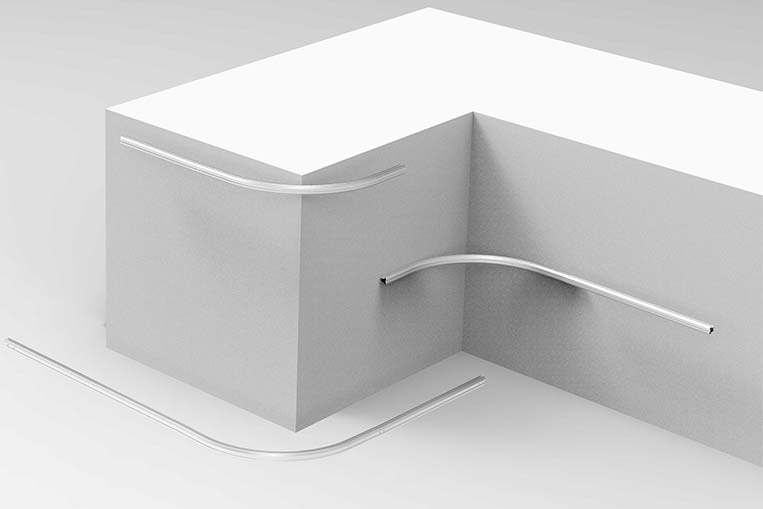

A range of curves, fasteners and special brackets are available, which can also be designed ad hoc, to make the rail a safe anchorage that is fully integrated into the structure to be secured.

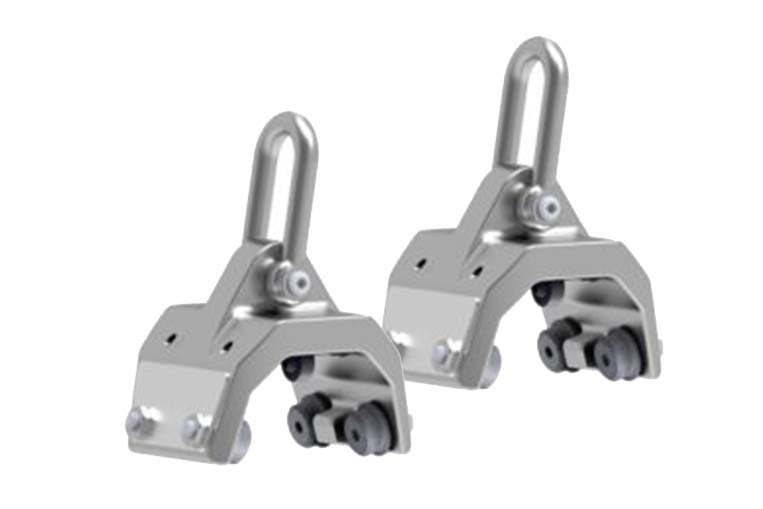

AluxCrab can be used with the dedicated XC10A trolley which is made of stainless steel with excellent mechanical and chemical resistance characteristics. The XC10A trolley was developed to ensure excellent sliding in all three types of installation thanks to the special brass-coated rolling bearings.

AluxCrab is made of materials that prevent the accumulation of electrostatic charges and the generation of triggers and can be configured for suspended work with fasteners placed at most every 1.5 meters. For suspended work, two trolleys must be used, one of which is equipped with a special brake to stop movement on the rail.

The Genesi Alux Crab rail complies with EN 795:2012 Type D, CEN/TS16415:2013 and UNI11578:2015 standards and allows the protection of up to 3 operators.

• Up to 3 operators
• Low deflection
• Absorbs the eventual dilation or contraction
• Wide range of supports and possibility to design to measure or possibility of direct installation on structure
