Gas Detector Docking Stations

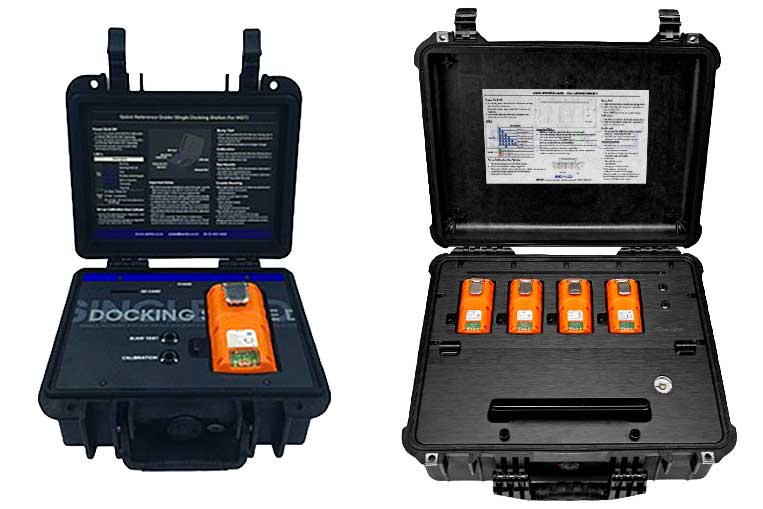

MGC Dock

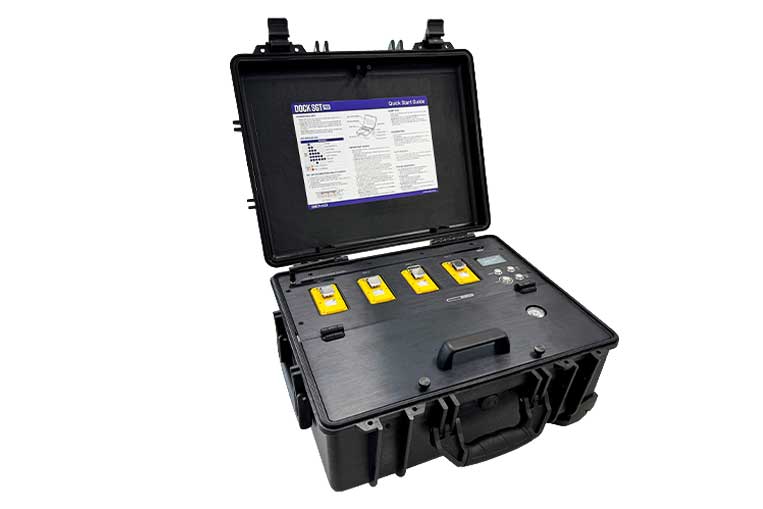

MGC IR Docking Stations MGC P IR Docking Stations MGC Simple Docking Stations
Click on main image to expand

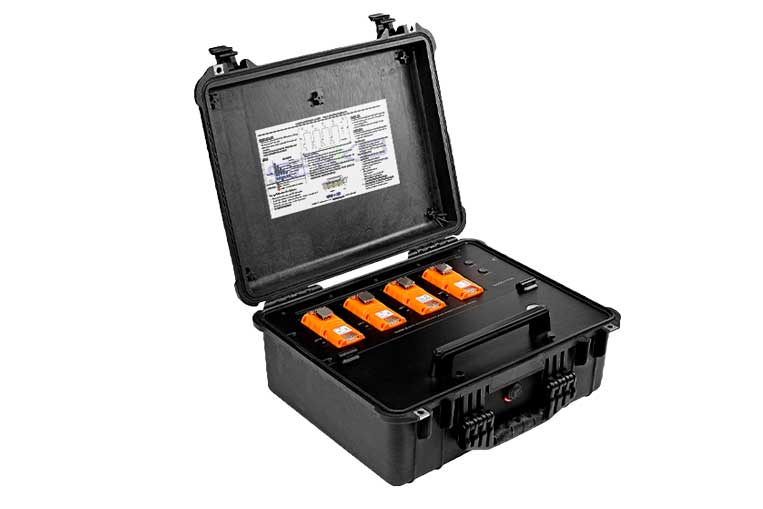

The MGC docks are an all-in-one stand-alone docking station designed for maximum testing efficiency and portability. They can test up to four detectors simultaneously, reducing the testing time and gas usage.

They are easy to use with only two buttons, one for bump tests and one for calibration. A bump test takes about 20 seconds and a calibration around 90 seconds to complete.

Every test will perform the following maintenance operations:

  • Upgrade each detector’s firmware (if required)
  • Set the detector’s date and time (if supported)
  • Test each detector’s beeper
  • Configure each detector’s user options (as required)
  • Download each detector’s logs
  • Record the test to the USB memory which can be transferred to a computer for analysis.

They are available either as a stand alone unit in a rugged case or as a wall mounted unit in a metal enclosure.

Weekly hire rate excluding VAT
Dock for MGC IR Units £105.22
Sales price excluding VAT
MGC IR Dock £2,525.00
MGC IR Wall Mount Dock £2,575.00
MGC P IR Dock £2,525.00
MGC P IR Wall Mount Dock £2,575.00
MGC Simple Dock £2,575.00
MGC Simple Wall Mount Dock £2,575.00
Service price excluding parts and VAT
MGC Docks P.O.A.
Top

Galaxy GX2 Automated Test System

Galaxy GX2 Automated Test System Galaxy GX2 Automated Test System test pass Galaxy GX2 Automated Test System test fail Galaxy GX2 with non electronic cylinder holder Galaxy GX2 Automated Test System printers
Click on main image to expand

The Galaxy GX2 Automated Test System offers simple, intelligent testing and calibration for all your Altair detectors.

It can be set as a standalone unit or as an integrated portable gas detector management system for the Altar, Altair PRO Single Gas, Altair 4X and 5X Multigas detectors. Each test stand accommodates one detector but up to 10 stands and 4 cylinder holders can be connected together. Options are available for a single value unit for use with one calibration gas cylinder or with four valves for use with up to four calibration gas cylinders.

The main components of the Galaxy GX2 System include the test stand and optional electronic or non-electronic cylinder holder, multi-unit charger, and receipt/sticker printer.

The unit comes with colour touch screen for ease of setup and viewing with clear navigation via large touch buttons and scrolling arrows.

The system automatically identifies the type of gas detector inserted into the stand and then performs bump tests and/or calibration based on user defined settings. The test results are clearly displayed on the screen once testing is complete.

The data collected from each test event is stored to a memory card or to the optional Link Pro software application for data analysis. The optional printer enables you to produce calibration and bump result receipts and calibration stickers.

The Link Pro software can be used to network the test stand to a PC or server through an Ethernet cable. The software offers:

  • Database storage of instrument periodic and session datalogs
  • Automatic or customised reports from the collected data
  • Single glance notification of instruments that are overdue for calibration or bump test
  • Email notifications of Galaxy GX2 system and instrument warnings and error messages
  • Single setting configuration of all Galaxy GX2 units in a bank so there is no need to individually configure each test stand
Sales price excluding VAT
In view of the configuration options available for the Galaxy GX2 Automated Test System please contact us on 01404 43000 to discuss your requirements and we will be happy to provide you with a personalised quotation. P.O.A
Service price excluding parts and VAT
Galaxy GX2 Automated Test System P.O.A.
Top

Crowcon I-Test

T4 Automatic Bump Testing Gas-Pro Automatic Bump Testing I-Test Automatic Bump Testing Accessories
Click on main image to expand

The I-Test is a fully automated solution for testing your T4 and Gas-Pro monitors.

The I-Test starts testing automatically when a unit is inserted making it very simple to use. The test carries out verification that the sensors are responding to a known value of gas and the filters are clear and good for use. It can also ensure the audible and visual alarms are working.

The design of the demand flow regulator coupled with the I-Test will allow the automatic pull of the required amount and concentration of gas without the need to turn the gas on and off. The I-Test can also recognise cylinders that are empty or those that have expired.

The unit is mains powered with a battery back-up and is a self-contained unit which stores all bump test or calibration records.

The I-Test unit is configured using the I-Test Manager software to perform bump test or calibration as per user requirements.

The I-Test Manager software enables you to see everything that has been tested and the results of the test and can provide reports of units that have not been calibrated or bump tested. It also enables you to report on which monitors have gone into alarms and more.

Sales price excluding VAT
I-Test 1 x Gas Inlet and T4 Module for Atex Regional Settings (CH4 set to 2.2%) £2,092.00
I-Test 1 x gas inlet and Gas-Pro Module for Atex Regional Settings (CH4 set to 2.2%) £2,092.00
Cylinder holder (wall mount) for 34L to 112L cylinders £126.00
0-3 LPM Demand Flow Regulator £357.00
Calibration Gas: H2S 15ppm, CO 100ppm, CH4 2.2%, CO2 1%, O2 18%, Balance Nitrogen - 34 Litres £178.00
Calibration Gas: H2S 15ppm, CO 100ppm, CH4 2.2%, CO2 1%, O2 18%, Balance Nitrogen - 112 Litres £222.00
Calibration Gas: H2S 15ppm, CO 100ppm, CH4 2.2% (ATEX-50% LEL), O2 18%, Balance Nitrogen - 112 Litres £219.00

Other Calibration Gas configurations are available plesae contact us on 01404 43000 to discuss your requirements.

Service price excluding parts and VAT
Crowcon I-Test Automated Bump Test Station P.O.A.
Top

PS200 Automatic Bump Testing and Calibration Station

PS200 Automatic Bump Testing and Calibration
Click on main image to expand

The PS200 Automatic Bump Testing and Calibration Station provides full bump test and calibration options. The system is easy to use with a durable, user friendly design. The test station is available as as stand-alone unit or can be linked to a PC using the FlexCal Plus Software.

Once the PS200 is placed in the dock it can be tested, calibrated and charged ready for use.

The station can improve compliance record-keeping as the data can be downloaded and stored. Data transfer is facilitated using a USB memory stick with standalone software that is simple to set up and customise based on your specifications. Alternatively if the unit is linked to a PC the results can be automatically stored to a database on the PC. The stored results can be easily viewed and reports compiled. An ethernet option is also available to enable multiple testing stations to linked to a PC over a network.

Sales price excluding VAT
PS200 Auto Bump & Calibration Station (6mm fittings, PSU and USB stick with standalone software)* £858.00
Calibration Gas Kit (combi test gas CH4:2.5%, CO:500ppm, H2S:50ppm, O2:18%, balance N2, demand flow regulator with tubing) £594.00
FlexiCal Plus Software for PC £517.00

* a Calibration Gas Kit or equivalent is required for the Auto Bump & Calibration Station

Service price excluding parts and VAT
PS200 Automatic Bump Testing and Calibration Station P.O.A.
Top

PS500 Automatic Bump Testing and Calibration Station

PS500 Automatic Bump Testing and Calibration
Click on main image to expand

The PS500 Automatic Bump Testing and Calibration Station provides full bump test, calibration and data management options. The system is simple to use with a robust, intuitive design. The test station is available as as stand-alone unit or can be linked to a PC using the FlexCal Plus Software.

Two versions of the PS500 Automatic Bump Testing and Calibration Station are available for either a single gas cylinder or up to three cylinders to be connected. Additionally, a special three cylinder version is available for reactive gases.

Once the PS500 is placed in the dock it can be tested, calibrated and charged ready for use.

The station can improve compliance record-keeping as the data can be downloaded and stored. Data transfer is facilitated using a USB memory stick with standalone software that is simple to set up and customise based on your specifications. Alternatively if the unit is linked to a PC the results can be automatically stored to a database on the PC. The stored results can be easily viewed and reports compiled. An ethernet option is also available to enable multiple testing stations to linked to a PC over a network.

Sales price excluding VAT
PS500 Auto Bump & Calibration Station - single gas connection (6mm fittings, PSU and USB stick with standalone software) £826.00
PS500 Auto Bump & Calibration Station - 3 gas connections (4mm/6mm fittings, PSU and USB stick with standalone software) £1,099.00
PS500 Auto Bump & Calibration Station - multi gas connections (for reactive gases CL2/ NH3) £1,211.00
Calibration Gas Kit (combi test gas CH4:2.5%, CO:500ppm, H2S:50ppm, O2:18%, balance N2, demand flow regulator with tubing) £594.00
FlexiCal Plus Software for PC £517.00
Service price excluding parts and VAT
PS500 Automatic Bump Testing and Calibration Station P.O.A.
Top
