Reid Porta Gantry Rapide & Porta Gantry Specifications

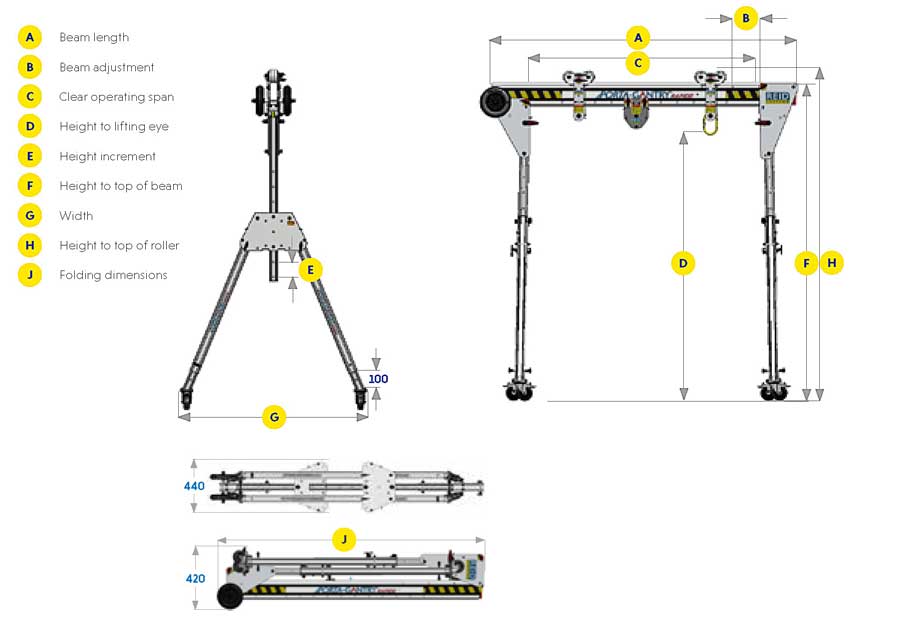

Porta Gantry Rapide
Dimensions [mm] | |||||||||||||||||
Reference | A Beam Length |
B | CMin | CMax | DMin | DMax | E | FMin | FMax | G | HMin | HMax | J | Good Capacity (kg) | *Fall Arrest Capacity No of Person(s) |
*Personnel Positioning (kg) | **Unit Weight (kg) |
PGRS20 | 2000 | 2 x 200 | 1100 | 1500 | 1450 | 2050 | 6 x 100 | 1776 | 2376 | 1158 | 1856 | 2456 | 2080 | 500 | 3 | 250 | 37 |
*Ratings using European standards. ** Weight includes castor inserts.

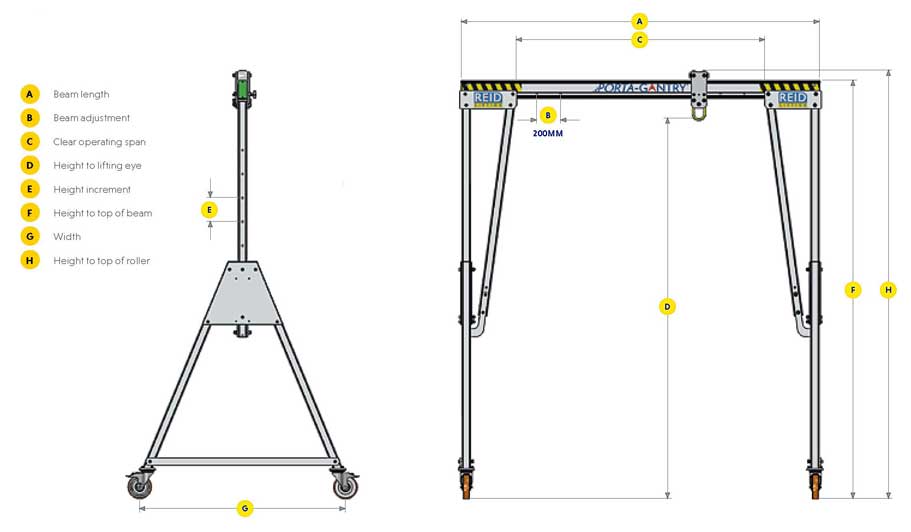

Porta Gantry
Beam Length A | 3000 | 3920 | 4570 | ||||||||
C (min) | 1680 | 2200 | 2050 | ||||||||
C (max) | 2080 | 3000 | 3650 | ||||||||
Weight (kg) | 22 | 29 | 34 | ||||||||
Dimensions [mm] | |||||||||||
WLL (kg) | Reference | DMax Height to Lifting Eye |
E Height Increment |
DMin Height to Lifing Eye |
FHeight to Top of Beam | HMax Height to Top of Roller |
HMin Height to Top of Roller |
G Width |
A-Frame Weight (kg) | Trolley Roller Size | Castor Diam |
2000 | PGAS02000M | 2851 | 5 x 150 | 2101 | 3171 | 3253 | 2503 | 1429 | 42 | 82 | 150 |
2000 | PGAS02000T | 4079 | 6 x 200 | 2879 | 4399 | 4481 | 3281 | 2011 | 56 | 82 | 200 |
Dimensions use standard Master Link Trolley.
