Confined Space Gas Detectors


T4 Personal Gas Monitor

T4 Personal Gas Monitor T4 Personal Gas Monitor multiple views T4 Personal Gas Monitor with charger
Click on main image to expand

The T4 personal gas monitor offers a rugged design along with single button operation that is easy to use when wearing gloves.

The T4 protects against the four most prevalent gas hazards; H2S, CO, O2 and LEL with a separate sensor for each gas and offers improved detection of pentane, hexane and other long chain hydrocarbons.

The unit has multiple alarms with an audible 95dB alarm, bright red/blue LED's and vibrating alerts to provide warning of gas hazards. The display is backlit and can optionally be flipped 180° for easy viewing when in use. There is a positive red/green safety indicator for a visual assurance of operational and compliance status.

The T4 has an 18 hour battery life for multiple or longer shifts and a TWA resume function to ensure that any toxic gas exposure is calculated accurately even if the unit is switched off during breaks. The T4 is ATEX approved and is rated IP65 and IP67.

The unit can log 130 hours of data at 10 second intervals with a total of 3500 events being recorded.

Weekly hire rate excluding VAT
T4 Personal Gas Monitor for H2S, CO, O2 and LEL comes with Case and 240v Charger £35.00
Sales price excluding VAT
T4 Personal Gas Monitor for H2, CO, O2 and LEL, Cradle Charger & 3 Year Warranty £534.00
Service price excluding parts and VAT
T4 Personal Gas Monitor 6 Month Calibration and Certification £35.00
Top

MGC IR

MGC IR Gas Detector MGC IR Gas Detector Rear View
Click on main image to expand

The Gas Clip MGC IR offers reliability on sensing flammable and toxic gases at an affordable price. The unit uses electrolyte cells for detecting H2S, O2; and CO but has an infra red sensor for detecting flammables. This ends all of the problems of cell poisoning for this sensor (see the IR Comparison document). It has a much faster reaction time and will perform where other units either can't or require different pelistors fitted. So if you have a problem with pellistor life or need to look for Jet A1 or kerosene this unit will give you a correct alarm unlike so many other units.

The low power required for running the IR cell also means it has a 60 day run time for the diffusion model.

This unit is perfect for the aircraft and petro chemical industry as well as for tank cleansing where fuels may be the main target gas.

The unit is also IP rated 6 for dust and 1-5 and 7 for water so it is waterproof to 1 metre for 30 minutes.

All charging options are available from 12 to 240v.

Weekly hire rate excluding VAT
MGC IR Gas Detector for H2S, CO, O2 and LEL comes with Case and 240v charger £35.00
Sales price excluding VAT
MGC IR Gas Detector for H2S, CO, O2 and LEL with 240v charger £660.00
Service price excluding parts and VAT
MGC IR 6 Month Calibration and Certification £35.00
Top

MGC P IR

MGC P IR Gas Detector MGC P IR Gas Detector Rear View
Click on main image to expand

The Gas Clip MGC P IR offers a pumped unit that has reliability on sensing flammable and toxic gases at an affordable price. The unit uses electrolyte cells for detecting H2S, O2 and CO. But has an infra-red sensor for detecting flammables. This ends all of the problems of cell poisoning for this sensor (see the IR Comparison document). It has a much faster reaction time and will perform where other units either can't or require different pelistors fitted. So if you have a problem with pellistor life or need to look for Jet A1 or kerosene this unit will give you a correct alarm unlike so many other units.

The low power required for running the IR cell also means it has a 40 hour run time meaning it will always deliver readings even if your working time runs on.

This unit is perfect for the aircraft and petro chemical industry as well as for tank cleansing where fuels may be the main target gas.

The unit is also IP rated 6 for dust and 1-5 and 7 for water so it is waterproof to 1 metre for 30 minutes although water can of course be drawn into the unit through the sampling tube.

All charging options are available from 12 to 240v although the units are supplied with a 240v charger unless you request a different charger.

Weekly hire rate excluding VAT
MGC P IR Gas Detector for H2S, CO, O2 and LEL comes with Case and 240v charger £55.00
Sales price excluding VAT
MGC P IR Gas Detector for H2S, CO, O2 and LEL with 240v charger £940.00
Service price excluding parts and VAT
MGC P IR 6 Month Calibration and Certification £35.00
Top

Altair 4X

Altair 4X Altair 4X in transit case Altair 4X being worn Altair 4X Infra-red Jet Eye Bump test and On Demand Gas Regulators and calibration gas
Click on main image to expand

The Altair 4X offers a very cost effective gas detector without the need to compromise. The unit offers monitoring of up to 4 gases, these being, flammable, oxygen, hydrogen sulphide and carbon monoxide. It’s small, tough, compact and waterproof. Add to this a man down alert option and it’s the right choice.

All sensors have a 3 year warranty and the bright LED alarm lights, audible pitch and easy to read display make it an excellent choice for your team.

With the purchase of an infra-red jet eye you can download your logs, datasheets and calibration reports. User training may be required to use the software - please contact us on 01404 43000 / 01404 44007 for further information.

Weekly hire rate excluding VAT
Altair 4X, set for O2, LEL, H2S and CO complete with Charger and Transit Case £30.00
Sales price excluding VAT
Altair 4X Transit Case £40.00 Buy Now
Infra-red Jet Eye £261.00 Buy Now
Bump Test Regulator £99.95 Buy Now
On Demand Calibration Gas Regulator £269.85 Buy Now
110 litre Cylinder of Calibration Gas for H2S, CO, O2; and CH4 £132.75 Buy Now

Other calibration gases are available please contact us on 01404 43000 / 01404 44007 for details.

Service price excluding parts and VAT
Altair 4 / Altair 4X £35.00
Top

Altair 4XR

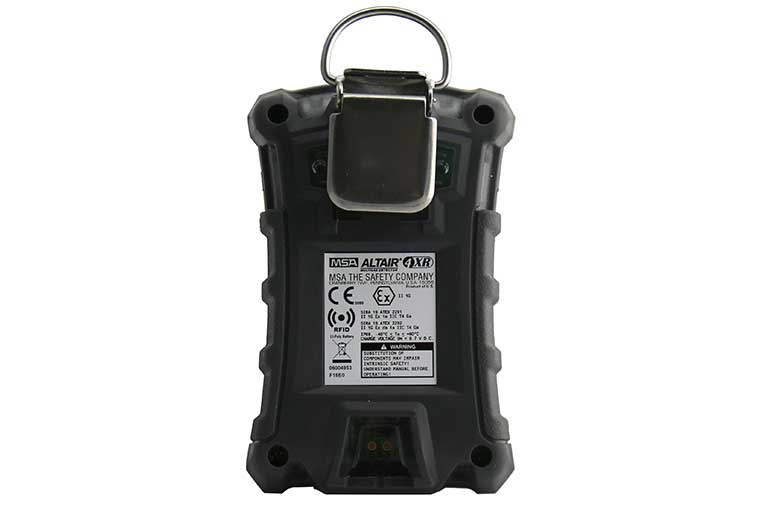

Altair 4XR Altair 4XR connected to Phone App via bluetooth Back and side views of the Altair 4XR
Click on main image to expand

The Altair 4XR is a resilient and reliable monitor fitted with 4 XCell sensors, these being, flammable, oxygen, hydrogen sulphide and carbon monoxide which offer a typical life of more than 4 years.

Tested to survive 25 drops from 4 feet (1.2m) and an incidental 25ft (7.5m) drop on to concrete. It has an IP rating 68, which means it can stand dust and water ingress at 2 meters for at least 1 hour.

The Altair 4XR can be paired with the Altair Connect app via a Bluetooth wireless connection to provide real time incident awareness to team members, supervisors and others. You can pair up to 6 detectors at a time with your Android device to allow you to share critical information from the field such as live gas readings, InstantAlert notification of a potentially dangerous situation or MotionAlert man down alarms. Other features include:

  • Push evacuation alerts to connected detectors
  • Receive detector compliance reminders
  • E-mail calibration, sampling & event reports
  • Update detector settings

This multi gas detector is suitable for use in industries including fire service, contracting, industrial, mining, oil and gas and utilities. The compliance feature allows you to see at a glance whether or not your gas detector has been bump tested.

Weekly hire rate excluding VAT
Altair 4XR for H2S, CO, LEL and O2 comes with Charger and Transit Case £35.00
Sales price excluding VAT
Altair 4XR for H2S, CO, LEL and O2 comes with Charger £713.00
Altair 4XR Transit Case £40.00 Buy Now
Service price excluding parts and VAT
Altair 4XR £40.00
Top

MGC Simple

MGC Simple MGC Simple Rear and Side Views
Click on main image to expand

The MGC Simple is a non-charging infrared two year four gas detector for H2S, CO, LEL and O2

This easy to use one button detector runs continuously for 2 years after activation with no charging or calibration required although the unit can be calibrated if required. The MGC Simple completes a full function self-test upon activation and subsequent sensors, battery and circuitry tests run continuously. It is compatible with the MGC Simple Docks for calibration and bump testing.

The MGC Simple works in oxygen enriched and oxygen deficient environments and the LEL sensor is immune to H2S & silicone poisoning.

The unit offers dataloging that covers:

  • 25 Bump Tests
  • 25 Events
  • 25 Calibrations
  • Continuous 1 second data logging (typical capacity >2 months)
Sales price excluding VAT
MGC Simple for H2S, CO, LEL and O2 £645.00
Service price excluding parts and VAT
MGC Simple £35.00
Top

MGC Simple Plus

MGC Simple Plus MGC Simple Plus Side and Rear Views
Click on main image to expand

The MGC Simple is a non-charging infrared three year four gas detector for H2S, CO, LEL and O2

This easy to use one button detector runs continuously for 3 years after activation with no charging or calibration required although the unit can be calibrated if required. The MGC Simple completes a full function self-test upon activation and subsequent sensors, battery and circuitry tests run continuously. It is compatible with the MGC Simple Docks for calibration and bump testing.

The MGC Simple works in oxygen enriched and oxygen deficient environments and the LEL sensor is immune to H2S & silicone poisoning.

The unit offers dataloging that covers:

  • 25 Bump Tests
  • 25 Events
  • 25 Calibrations
  • Continuous 1 second data logging (typical capacity >2 months)
Sales price excluding VAT
MGC Simple Plus for H2S, CO, LEL and O2 £745.00
Service price excluding parts and VAT
MGC Simple Plus £35.00
Top

PS200

GMI PS200 with charger and protective boot GMI PS200 being held GMI PS200 front, back and side views
Click on main image to expand

The PS200 is a small robust personal multi gas detector for standard sewerage use. The unit is available as either a pumped or, as is more common, natural diffusion monitor. The unit uses 3 cells to monitor for the 4 standard confined space gases of H2S, CO, LEL and O2.

The unit is rated as IP 5 and 7 for water so will not be affected by heavy rain and can take submersion for 30 minutes in water up to 1 metre deep. If the unit takes a dunk it will of course not sense gas whilst the sensors are covered but will save a hefty repair cost as the water can be shaken off.

A bump test though should be done within 24 hours to ensure that the sensor filters have not dried out with a non-porous coating from the waste contaminates. This unit also uses the latest USB charging methods so can be charged from any item that will connect, for instance vehicle lighter sockets.

Weekly hire rate excluding VAT
PS200 for H2S, CO, LEL and O2; comes with Charger and Protective boot £30.00
PS200 Pumped for H2S, CO, LEL and O2 comes with Charger, Protective boot and Integral Pump £30.00
Sales price excluding VAT
PS200 for H2S, CO, LEL and O2 comes with Charger and Protective boot £510.00 Buy Now
PS200 Pumped for H2S, CO, LEL and O2 comes with Charger, Protective boot and Integral Pump £559.00 Buy Now
Service price excluding parts and VAT
PS200 Pumped or Non-Pumped £35.00
Top

MultiPro

MultiPro and charger MultiPro with Pump Unit
Click on main image to expand

The MultiPro offers real time readings for up to 4 gases, true one-button operation (including calibration), and the option of a built-in event logger capable of storing information for 20 events including sensor type, max and average readings, time and duration.

It's comes with a Li-ion battery pack and offers run times up to 22 hours. For remote sampling, motorized sample pump units are available.

The MultiPro is the most versatile gas detector on sale if you want to self-calibrate and keep a fully auditable tracking system of work, bump testing and calibrations that have taken place. The unit will automatically self-calibrate and also produce a test certificate, this functionality can be shown to any operative, even one who has no previous experience in this field. The Calibration Dock will not allow a calibration if the unit fails, hence it runs a fully integrated fail safe system.

Service price excluding parts and VAT
MultiPro with any Configuration of Sensors £35.00
Top

PGD2

PDG2 with Yellow Protective Boot
Click on main image to expand

The PGD2 Mentor portable gas detector is an intrinsically-safe portable multi-gas instrument for use in Group IIC potentially explosive atmospheres. The instrument is intended to be used for the protection of personnel entering or working in an environment where a gas hazard may, or is known to exist.

The instrument produces both audible and visual alarms if any of the monitored gas levels fall outside pre-set limits. It can be fitted with up to 4 gas sensors in various combinations of flammable, toxic and oxygen to provide simultaneous monitoring of each gas.

The data logging facilities available within the instrument allow the exposure levels for each gas to be stored for downloading to a personal computer at the end of the work period. The instrument also automatically calculates the STEL and LTEL values for each gas as required by the COSHH regulations in the United Kingdom. Pumped versions are available at an additional cost.

Service price excluding parts and VAT
PGD2 with any cell configuration £45.00
Top
