Multi Personnel Monitors

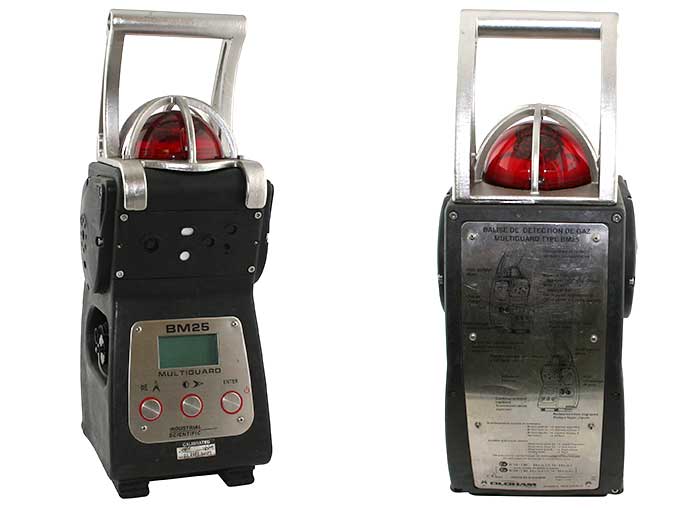

BM25

BM25 Gas Detector BM25 Gas Detector
Click on main image to expand

The BM25 Transportable area monitor is capable of monitoring one – five gases through diffusion or sample draw. The BM25 packs all the benefits of a fixed-system area monitor into an easily transportable instrument.

There are 17 interchangeable “smart” sensor options available for the BM25 making the system easily adaptable to a variety of applications and industries. When the BM25 detects a hazardous level of oxygen, toxic or combustible gas, the top mounted beacon sends a flashing, bright signal in all directions while emitting a powerful, 103 dB siren alarm.

The BM25 can be used as a stand-alone unit or can be linked together so the alarm signals are passed through each unit.

Long-term area monitoring is possible in hazardous area with this items unique intrinsically safe trickle charge power supply. Also standard are STEL and TWA readings and nearly four months of data logging capacity for a five-gas configuration.

Weekly hire rate excluding VAT
BM25 Transportable Area Monitor with LEL, CO, H2S & O2 £110.00
Sales price excluding VAT
BM25 Area Monitor with LEL, CO, H2S & O2 with Methane Calibration £2,893.00
BM25 Area Monitor with LEL, NH3, CL2 & O2 with Methane Calibration £3,032.00
BM25 Area Monitor with LEL, PH3, CO/H2S & O2 with Methane Calibration £3,196.00
BM25 Area Monitor with LEL, CO, H2S & O2 with Pentane Calibration £2,893.00
BM25 Area Monitor with LEL, NH3, CL2 & O2 with Pentane Calibration £3,032.00
BM25 Area Monitor with LEL, PH3, CO/H2S & O2 with Pentane Calibration £3,196.00
BM25 Universal Charger with Power Cord £103.00
Service price excluding parts and VAT
BM25 Transportable Area Monitor with any cell configuration £45.00
Top

BM25 Wireless

BM25 Gas Detector
Click on main image to expand

The BM25 Wireless Transportable area monitor is capable of monitoring one – five gases through diffusion or sample draw. The BM25 Wireless packs all the benefits of a fixed-system area monitor into an easily transportable instrument.

There are 17 interchangeable “smart” sensor options available for the BM25 Wireless making the system easily adaptable to a variety of applications and industries. When the unit detects a hazardous level of oxygen, toxic or combustible gas, the top mounted beacon sends a flashing, bright signal in all directions while emitting a powerful, 103 dB siren alarm.

The BM25 Wireless allows several devices to communicate on the same network or to send information wirelessly to a controller. The network topology used by the BM25 wireless is a MESH network. In a mesh network all hosts are connected peer to peer without central hierarchy, thereby forming a net-like structure. Each unit can receive, send and relay data. This prevents, having sensitive points. If one unit goes down it goes through another route.

Wireless communication is made via a 2.4 GHz radio and emitted power is less than 100 mW. Maximum distance between two communicating devices id 0.6 mile line of slight.

Long-term area monitoring is possible in hazardous area with this items unique intrinsically safe trickle charge power supply. Also standard are STEL and TWA readings and nearly four months of data logging capacity for a five-gas configuration.

Weekly hire rate excluding VAT
BM25 Wireless Transportable Area Monitor with LEL, CO, H2S & O2 £140.00
Sales price excluding VAT
BM25 Wireless Area Monitor with LEL, CO, H2S & O2 with Methane Calibration £3,323.00
BM25 Wireless Area Monitor with LEL, NH3, CL2 & O2 with Methane Calibration £3,462.00
BM25 Wireless Area Monitor with LEL, PH3, CO/H2S & O2 with Methane Calibration £3,626.00
BM25 Wireless Area Monitor with LEL, CO, H2S & O2 with Pentane Calibration £3,323.00
BM25 Wireless Area Monitor with LEL, NH3, CL2 & O2 with Pentane Calibration £3,462.00
BM25 Wireless Area Monitor with LEL, PH3, CO/H2S & O2 with Pentane Calibration £3,626.00
BM25 Universal Charger with Power Cord £103.00
Service price excluding parts and VAT
BM25 Wireless Transportable Area Monitor with any cell configuration £45.00
Top

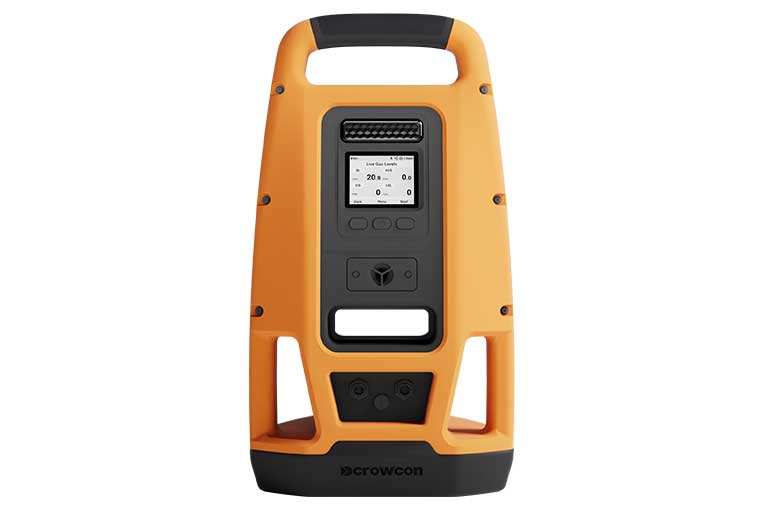

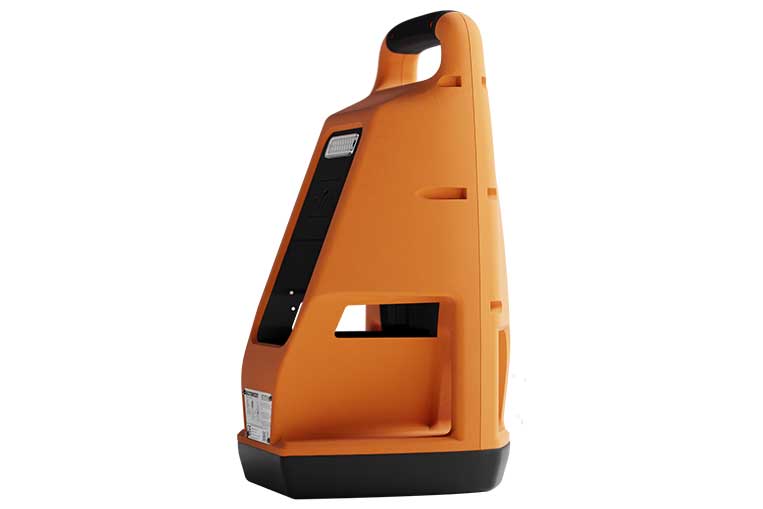

Detective+ Transportable Area Monitor

Detective+ with Detective Net Detective+ Temporary Area Monitor with folding legs Detective+ Temporary Area Monitors
Click on main image to expand

The Detective+ Transportable Area Monitor is a multi-gas unit that can be used as a standalone unit or linked together with cables or wirelessly using Detective Net to form a perimeter.

Up to 12 Detective+ units can be linked together by cable or 25 units when using the Detective Net system and placed up to 100 metres apart. If any of the units alarms, all of the monitors in the network alarm. Three large top mounted LEDs provide a visual alarm with the unit detecting the gas flashing at a higher rate than the other units along with a audible 104 dBA omni-diretion siren.

The display is a high contrast LED with back light that simultaneously shows the values and units for up to 4 gases at current, TWA or peak levels.

These units are robust and with the triple leg design the unit is easily visible and at the perfect height to allow 360 gas inlet. There is an option for a folded leg design so the units can be stacked for transport and storage.

Weekly hire rate excluding VAT
Detective+ Transportable Area Monitor with LEL (pellistor), O2, CO, H2S - Non-Pumped £140.00
Sales price excluding VAT
Detective+ Transportable Area Monitor with LEL (pellistor), O2, CO, H2S - Non-Pumped with rigid legs and charging lead £2,977.00
Detective+ Transportable Area Monitor with LEL (pellistor), O2, CO, H2S - Non-Pumped with folding legs and charging lead £2,977.00
Detective NET 433MHz (with 0.7M of cable) £544.00

Other gas configurations are availabe please give us a call on 01404 43000 / 014040 44007 to discuss your requirements.

Service price excluding parts and VAT
Detective+ Transportable Area Monitor with any cell configuration £45.00
