Cable Avoidance


EZiCAT xf Range

EZiCAT i650xf EZiCAT i750xf EZiCAT i650xf in use EZiCAT i650xf display

The Network Rail approved EZiCAT xf range are truly smart cable locators that have mulitple modes of operation.

All xf locators start from the base unit, the i500xf, and use any one of 4 transmitter mode frequencies of 8kHz, 33kHz, 512Hz and 640Hz. This helps pinpoint services that are otherwise difficult to tell apart. A radio mode to trace signals from distant radio transmittters and a power mode for locating power signals radiated from energized cables.

  • Mode Lock: automatically starts in the last mode of operation for ease of use
  • Hazard Zone: provides an additional warning of the close proximaty of buried services.
  • Pinpoint Assist: maintains the hightest peak reading obtained to allow the operator to accuratly pinpiont a service
  • Signal Strength Indicator: enables tracing of individual services amoungst multiple serivices when connected to an EZiTEX transmitter
Additional Features from basic model i550xf i600xf i650xf i750xf
Depth feature: locate utilities up to 3m deep when used with the EZiTEX transmitter or to 9.9 metres deep with a Sonde Y - Y Y
Current Level Indication: displays the amount of current flowing through a service Y - Y Y
Data Logging: Records information every second following start up which can be transfered to a PC for analysis - Y Y Y
Bluetooth Connectivity: allows integration with mobile mapping technology to log survey data and allows wireless data transfer - Y Y Y
Selectable Bluetooth Option: standard format or a shortened version for integration into GIS solutions - Y Y Y
LOGiCAT Software: upload the stored records to view the locators use - Y Y Y
Integrated GPS: logging information on how, when and importantly where the locator has been used - - - Y

For a demonstration or a full specification list please contact our office.

Weekly hire rate excluding VAT
EZiCAT i650xf Network Rail Approved Cable Locator £30.00
EZiCAT i750xf Network Rail Approved Cable Locator £35.00
Sales price excluding VAT
EZiCAT i500xf Network Rail Approved Cable Locator £545.00
EZiCAT i550xf Network Rail Approved Cable Locator £595.00
EZiCAT i600xf Network Rail Approved Cable Locator £695.00
EZiCAT i650xf Network Rail Approved Cable Locator £845.00
EZiCAT i750xf Network Rail Approved Cable Locator £1,170.00
Service price excluding parts and VAT
EZiCAT Network Rail Approved Cable Locators £55.00
Top

EZiTEX

EZiTEX t300xf EZiTEX t300xf close up EZiTEX t300xf case

The EZiTEX Signal Transmitters are designed to ensure that your cable detector works to the best of its ability.

The transmitters offer frequencies of 8Hz, 33Hz, 512Hz and 640Hz and can be supplied with a power output of either a 1 or 3 watts.

The units all have a built in self-test facility so as to ensure they are working prior to use.

Weekly hire rate excluding VAT
EZiTEX t100xf 1 Watt Signal Transmitter £25.00
EZiTEX t300xf 3 Watt Signal Transmitter £30.00
Sales price excluding VAT
EZiTEX t100xf 1 Watt Signal Transmitter £495.00
EZiTEX t300xf 3 Watt Signal Transmitter £695.00
Service price excluding parts and VAT
EZiTEX t100xf 1 Watt Signal Transmitter £35.00
EZiTEX t300xf 3 Watt Signal Transmitter £35.00
Top

C.A.T4

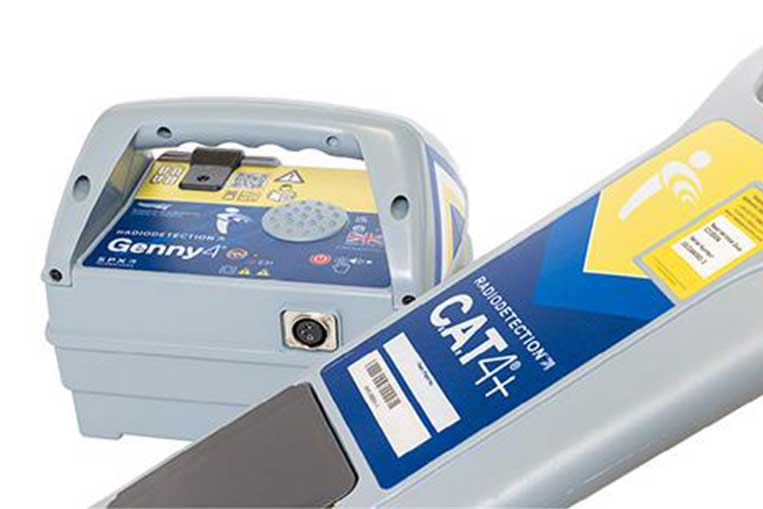

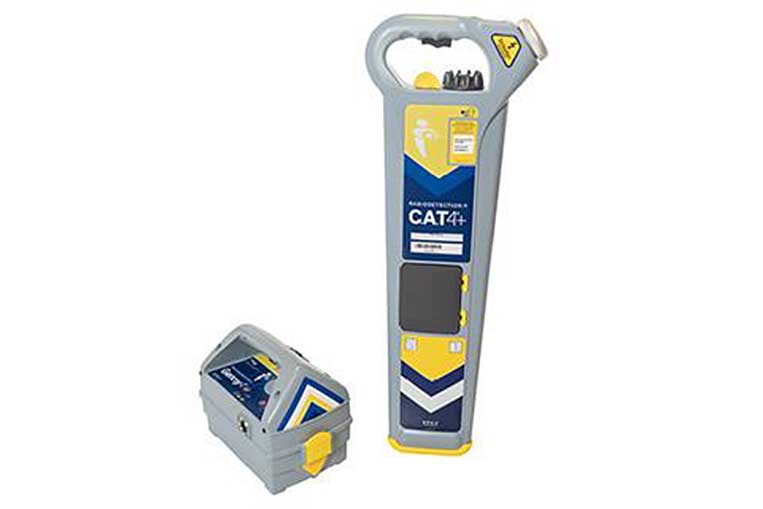

C.A.T4 and Genny FlexiTrace C.A.T4 Sonde

The C.A.T (Cable Avoidance Tool) can detect signals naturally radiating from metallic service or if a Genny is used a signal distinctive to the C.A.T can be sent along the object so the C.A.T can detect it.

The C.A.T4 is the latest in a line of continuous improvements. The C.A.T4 utilises the latest technologies to bring you the most optimised cable avoidance tool in the market place today.

Avoidance Scan
This feature allows the user to sweep an area searching for Power, Radio and Genny signals simultaneously, dramatically speeding up pre dig survey times and encouraging the full use of all three modes of reducing costs and improving safety.

StrikeAlert
Although work practices and guidelines insist power cables are buried below a certain depth, a common cause of cable strike is shallow depth. The StrikeAlert feature alerts the user to shallow power cables by flashing the ALERT icon on the display of the C.A.T4, C.A.T4+, eC.A.T4 or eC.A.T4+ if the option has been purchased.

Swing Warning
This option is only available with the eC.A.T4 and eC.A.T4+. This ground breaking feature warns operators of incorrect usage to promote best working practices.

Weekly hire rate excluding VAT
FlexiTrace 50 metre £40.00
Standard Sonde works to Depth of 5 metres £25.00
Sales price excluding VAT
C.A.T4 £643.00
C.A.T4 StrikeAlert £701.00
C.A.T4+ Depth Measurement Capability and StrikeAlert £797.00
eC.A.T4 Datalogging and StrikeAlert £864.00
eC.A.T4+ Depth Measurement Capability, Datalogging and StrikeAlert £959.00
Genny4 for use with the above units £619.00
C.A.T4+ with Genny4 and Carry Bag £1,236.00
FlexiTrace 50 metre £879.00
Standard Sonde works to Depth of 5 metres £251.00
Service price excluding parts and VAT
C.A.T3 from £108.00
Genny3 from £108.00
C.A.T4 from £97.50
C.A.T4 StrikeAlert from £97.50
C.A.T4+ Depth Measurement Capability and StrikeAlert from £128.75
eC.A.T4 Datalogging and StrikeAlert from £97.50
eC.A.T4+ Depth Measurement Capability, Datalogging and StrikeAlert from £141.25
Genny4 from £97.50
C.A.T4+ with Genny4 from £195.00
FlexiTrace 50 metre from £97.50
Top
